Stainless steel gas connector pipe is mainly used for flexible gas water heater gas line connection.
Product corrosion resistance, high temperature, high pressure, sealing, bending free, easy to install, attractive and durable.
| Specifications | DN | Interface form | Length |
| RLB-RH-S-10 | DN10 | G 1/2 | Standard length, customizable |
|
RLB-RH-C-10 |
DN10 |
C 9.5 |
Standard length, customizable |
|
RLB-RH-CS-10 |
DN10 |
C 9.5 + G 1/2 |
Standard length, customizable |
|
RLB-RH-S-16 |
DN15 |
G 1/2 |
Standard length, customizable |
|
RLB-RH-S-20 |
DN20 |
G 3/4 |
Standard length, customizable |
|
RLB-RH-S-25 |
DN25 |
G 1 |
Standard length, customizable |
It is a large caliber connecting pipe for gas appliances to meet the flow demand of various high-power gas appliances and the connecting caliber can be customized according to customer requirements.
| Specifications | DN | Interface form | Length |
| RLB-RH-S-10 | DN10 | G 1/2 | Standard length, customizable |
|
RLB-RH-CS-10 |
DN10 |
C 9.5 + G 1/2 |
Standard length, customizable |
|
RLB-RH-S(G1/2-G3/4)-15 |
DN15 |
G 1/2 + G 3/4 | Standard length, customizable |
|
RLB-RH-S-20 |
DN20 | G 3/4 |
Standard length, customizable |

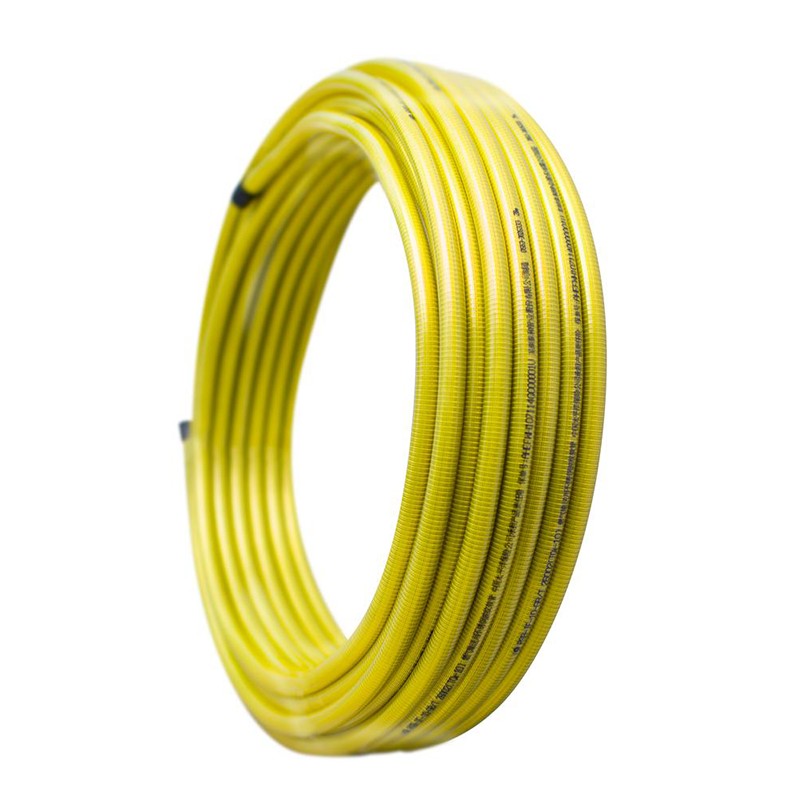

Corrugated stainless steel tubing for fueling gas is consists of small-bore corrugated pipe and covered by PVC. It is independently developed by our company and has become the new medium of gas, petroleum liquefied gas.
Good appearance: Flexible installations, could be installed in wall
Safety: The body material is stainless steel characterized by corrosion resistance
Convenient: Easy installation
Economic: The usage life is same as the building, saving the cost of renovation pipe system.
| Specifications | DN | Length |
| RSB-IF-10 | DN10 | 30M,50M,60M customizable |
|
RSB-IF-13 |
DN13 |
30M,50M,60M customizable |
|
RSB-IF-15 |
DN15 |
30M,50M,60M customizable |
|
RSB-IF-15A |
DN15 |
30M,50M,60M customizable |
|
RSB-IF-20 |
DN20 |
30M,50M,60M customizable |
|
RSB-IF-20A |
DN20 |
30M,50M,60M customizable |
|
RSB-IF-25 |
DN25 |
30M,50M,60M customizable |
|
RSB-IF-32 |
DN25 |
30M,50M,60M customizable |
