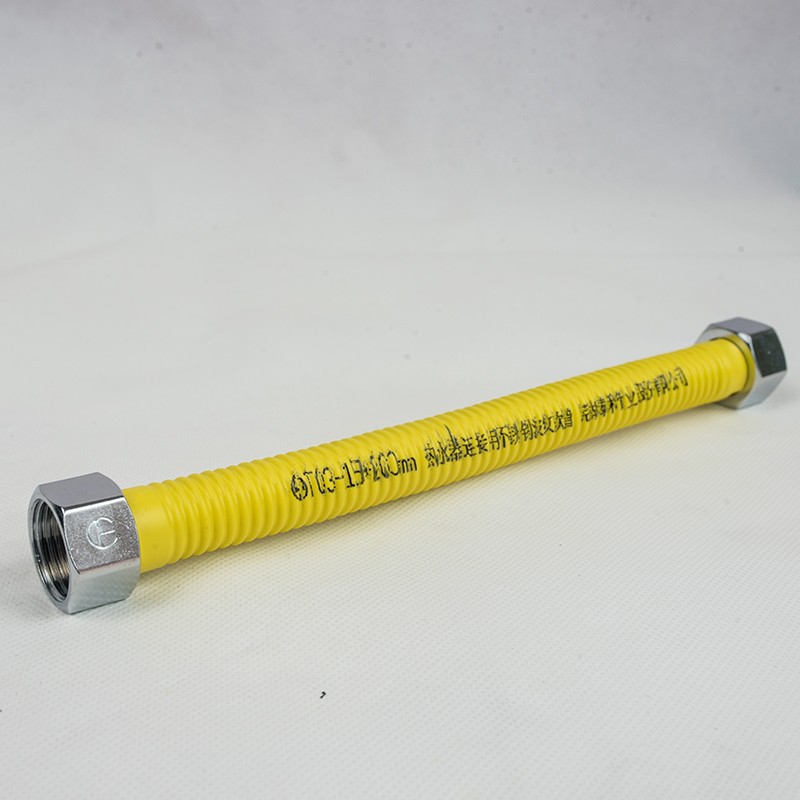

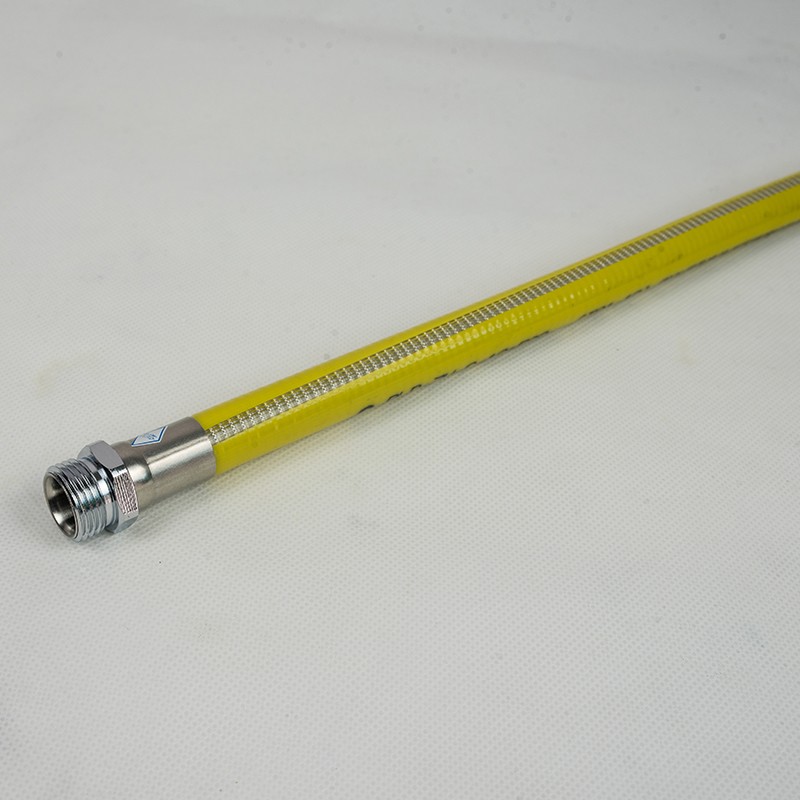

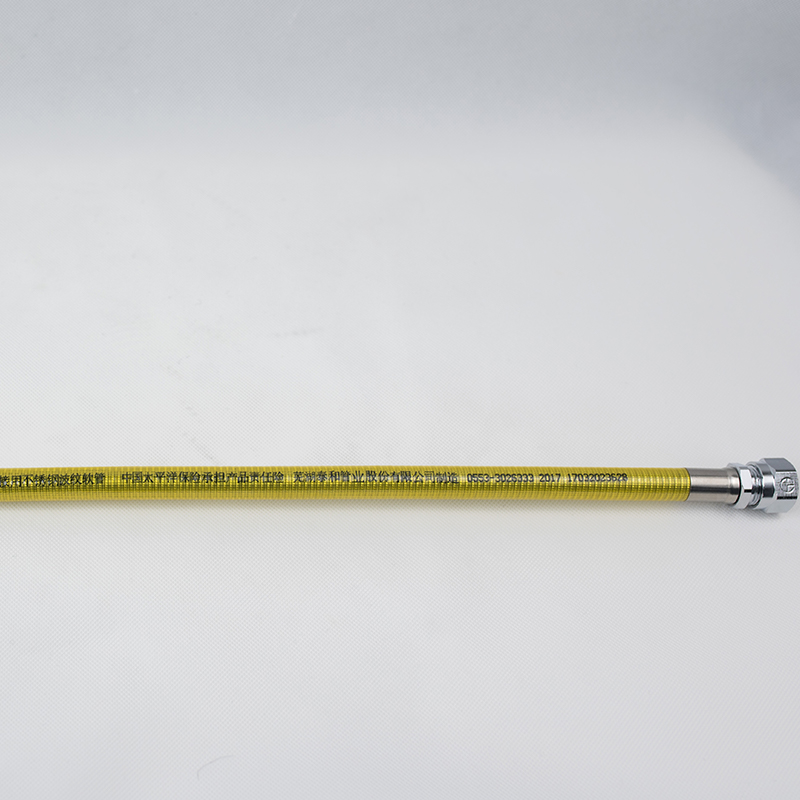

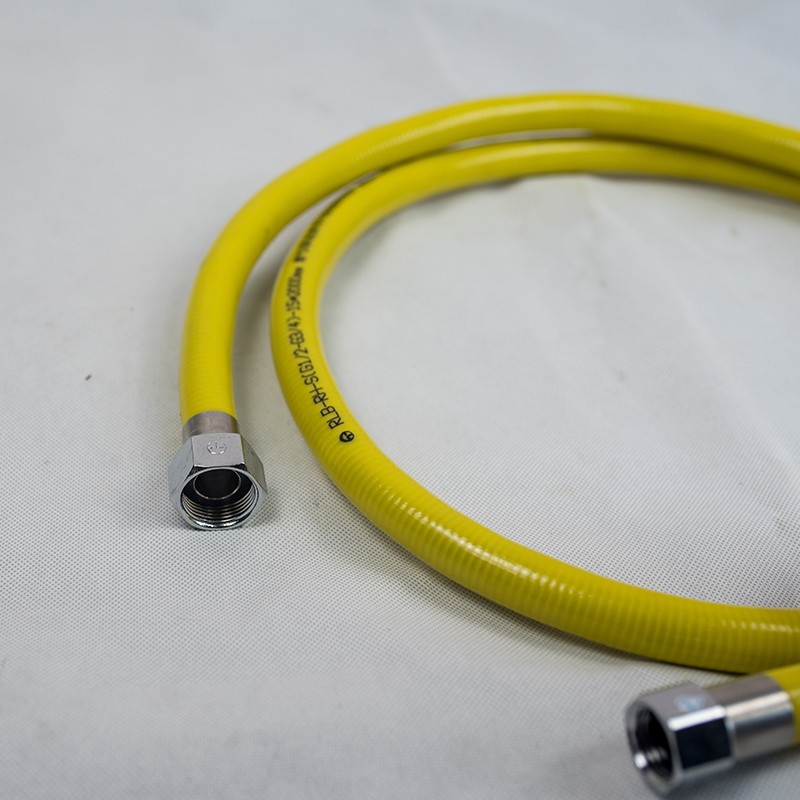

The stainless steel bellows used to connect the stove are used for connecting the gas source with the embedded (fixed) stove.
| Specifications | DN | Interface form | Length |
| RLB-ZH-S-10 | DN10 | G 1/2 | Standard length, customizable |
|
RLB-ZH-S-10 |
DN10 |
G 1/2 + G 3/8 |
Standard length, customizable |
|
RLB-ZH-S-10 |
DN10 |
G 1/2 + M18 * 1.5 |
Standard length, customizable |
|
RLB-ZH-S-10 |
DN10 |
C 9.5 |
Standard length, customizable |
|
RLB-ZH-S-10 |
DN10 |
G 1/2 + C 9.5 |
Standard length, customizable |
|
RLB-ZH-S-15 |
DN15 | G 1/2 |
Standard length, customizable |
|
RLB-ZH-S-20 |
DN20 | G 3/4 |
Standard length, customizable |
| Specifications | DN | Interface form | Length |
| RLB-ZH-S-10-R | DN10 | G 1/2 | Standard length, customizable |
|
RLB-ZH-C-10-R |
DN10 |
C 9.5 |
Standard length, customizable |
|
RLB-ZH-CS-10-R |
DN10 |
C 9.5 + G 1/2 |
Standard length, customizable |
|
RLB-ZH-S-12-R |
DN12 |
G 1/2 |
Standard length, customizable |
|
RLB-ZH-C-12-R |
DN12 |
C 9.5 |
Standard length, customizable |
|
RLB-ZH-CS-12-R |
DN12 | G 1/2 + C 9.5 | Standard length, customizable |
| Specifications | DN | Interface form | Length |
| RLB-BH-S-15 | DN15 | M30 * 2 + G 1/2 |
≥200mm |
|
RLB-BH-S-15 |
DN15 |
M30 * 2 + G 3/4 |
≥200mm |
|
RLB-BH-S-15 |
DN15 |
M33 * 1.5 + G 3/4 |
≥200mm |
|
RLB-BH-S-20 |
DN20 |
M36 * 2 + G 3/4 |
≥200mm |
|
RLB-BH-S-25 |
DN25 |
M42 * 2 + G 1 |
≥200mm |
|
RLB-BH-S-32 |
DN32 |
M42 * 2 + G 1 1/4 |
≥200mm |
