THREAD TYPE METAL BELLOWS EXPANSION JOINTS
| DN | working pressure | working temperature |
| DN25 - DN400 | 0.6 - 2.5MPa |
-100°C~400°C |

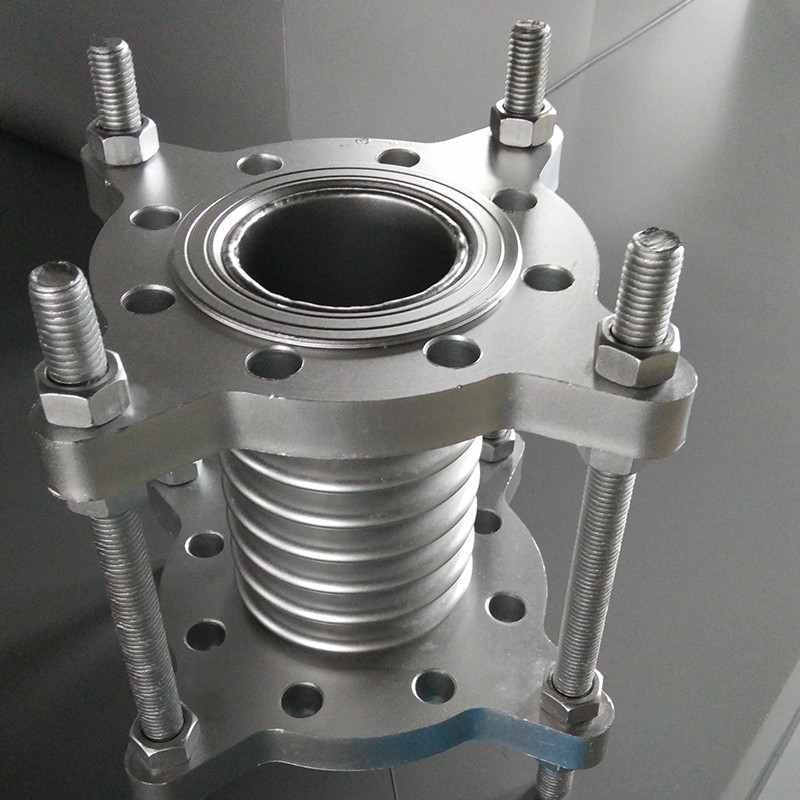

GAS METAL BELLOWS EXPANSION JOINTS
| DN | working pressure | working temperature |
| DN25 - DN400 | 0.6 - 2.5MPa |
-100°C~400°C |
THREAD TYPE METAL BELLOWS EXPANSION JOINTS
| DN | working pressure | connecting thread | working temperature |
| DN25 | 1.0-2.5MPa | G 1 |
-100°C~400°C |
| DN32 |
1.0-2.5MPa |
G 1 1/4 |
-100°C~400°C |
| DN40 |
1.0-2.5MPa |
G 1 1/2 |
-100°C~400°C |
| DN50 |
1.0-2.5MPa |
G 2 |
-100°C~400°C |

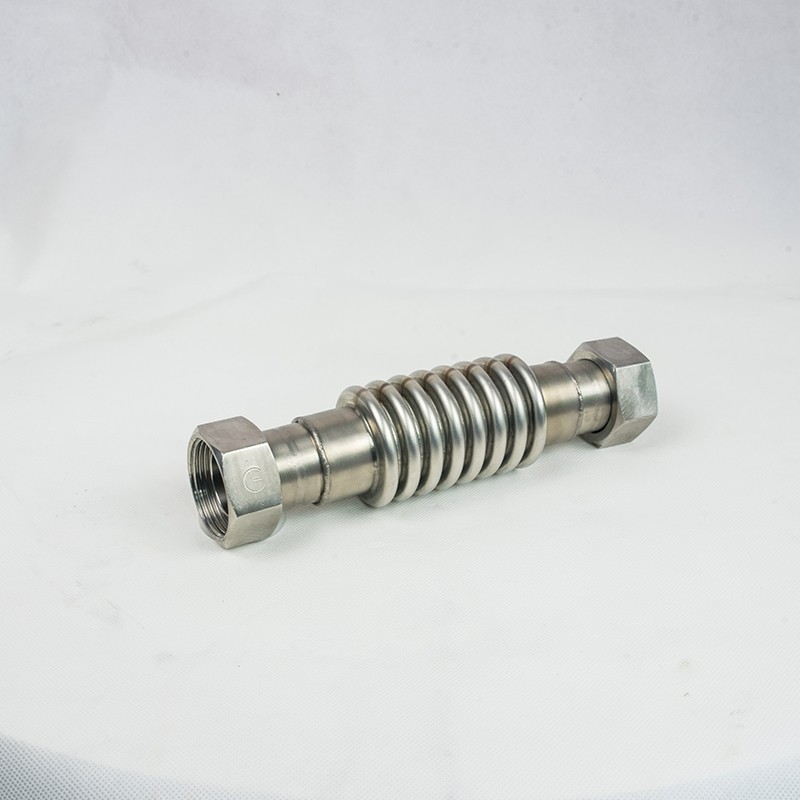

WITHIN-THREAD TYPE METAL BELLOWS EXPANSION JOINTS
| DN | working pressure | connecting thread | working temperature |
| DN25 | 1.0-2.5MPa | G 1 |
-100°C~400°C |
| DN32 |
1.0-2.5MPa |
G 1 1/4 |
-100°C~400°C |
| DN40 |
1.0-2.5MPa |
G 1 1/2 |
-100°C~400°C |
| DN50 |
1.0-2.5MPa |
G 2 | -100°C~400°C |
